Furnace Products

Schmidt Heating and Air Conditioning handles Lennox, Tempstar and American Standard furnaces. If you trust us to heat your home, we will do our part by only offering heating equipment from the best names in home heating.


One of the hardest decisions you'll have to make about your Furnace is when it's time for a new heating system for your home. You have been researching online or have heard neighbors talk about variable speed heating, single stage, two stage and modulating gas valves and AFUE ratings. Let us help you by explaining some of those furnace systems and related terms.

Furnace Efficiency Rating AFUE?

All of today's modern Furnaces and Boilers efficiency is measured by annual fuel utilization efficiency (AFUE). To be more specific, AFUE is the ratio of annual heat output of the furnace or boiler compared to the total fossil fuel energy consumed by a furnace or boiler in a year.


For example a furnace rated at 80 AFUE means for every dollar you spend to heat your home 80 cents is returned in heat and 20 cents is lost. The AFUE rating does not include how much heat energy is lost through the ductwork of the heating system. Leaking ducts or non insulated ductwork running through a cold attic will increase how much is lost.


A 80 AFUE rated furnace compared to older furnaces which recover only 45-65 cents worth of heat, these 80 AFUE furnaces are affordable and good choices for your home. To get the maximum worth out of each dollar spent on gas, a 98% plus operating furnace is the best option available. Each dollar spent in turn brings over 98 cents back in heat to your home.

Single Stage Furnace

his is the least expensive furnace. Also this type of furnace is the least technical, which means it is easy to install and repair making them the most common furnaces. Single stage means the furnace will use the same size of flame to produce heat regardless of the temperature outside or inside. So with single stage furnaces the furnace is cheaper to buy but your monthly utility bills with be higher to operate this type furnace.


Two Stage Furnaces

The furnace has two stages of heat, a smaller size flame for those chilly days and a larger size flame for those really cold days. This allows the furnace to stay on longer while burning less gas. This helps to keep your home more comfortable. And because the furnace actually slows down, noise is also reduced. A two stage furnace costs more initially but will save you on your monthly energy bills.


Variable Speed Furnace

Variable speed furnace does not actually refer to the furnace itself; it refers to the furnace's blower motor. The term "variable speed" refers to the furnace's indoor blower motor, which moves air at different speeds to precisely control the flow of heated and cooled air throughout your home. These variable speed motors use way less energy than the standard blower motors and increase the furnaces AFUE rating . These variable speeds also provide a quiet, consistent flow of air for enhanced comfort to help eliminate hot/cold spots in your home. If using a A/C unit with the furnace the variable speed greatly improves humidity control which saves you more money on cooling costs during the summer.


Variable Capacity Furnace also called Modulating Gas Furnaces

This type furnace goes beyond the two stage furnace by varying output between 35% and 100% only using the amount of fuel needed to maintain the desired temperature. The variable capacity furnaces are among the most energy efficient furnaces and are rated above 98% efficiency.

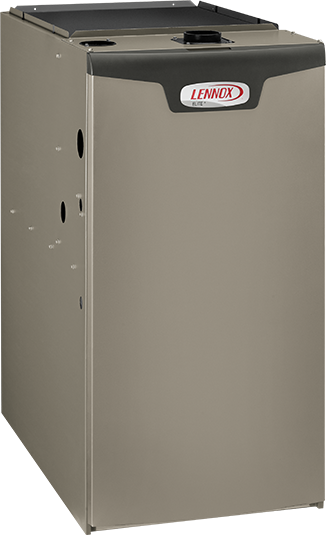

Lennox EL296V High-Efficiency, Two-Stage Gas Furnace

  • Efficiency rating of 96% AFUE
  • Energy Star rated
  • SilentComfort Technology and Sound Absorbing Insulation
  • Air Filter and Humidifier Compatible
  • Blower motor: Variable speed
  • Gas Valve: Two Stage operation for efficiency and comfort
  • SureLight Hot Surface Ignition
  • Ultra-Low Continuous Fan
  • Enhanced Humidity Control
  • Parts Warranty 5-Year Limited Warranty on covered components. This product may be eligible for valuable 10-Year Limited Extended Warranty coverage with product registration.
  • Heat Exchanger Warranty Limited Lifetime Warranty
  • View Brochure

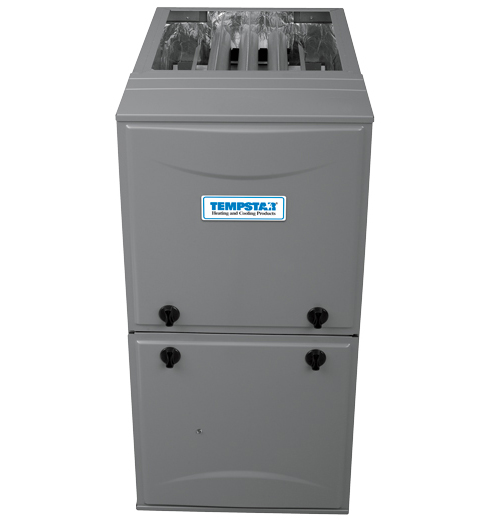

Tempstar Deluxe Modulating 98 Gas Furnace

  • Up to 98% AFUE rating
  • Energy star rated
  • The ultimate in quiet performance
  • Blower motor: Variable speed full-featured ECM
  • Gas Valve: Two Stage operation for efficiency and comfort
  • Reliable direct spark gas ignition
  • As a modulating furnace, it operates at lower stages most of the time to save energy, smoothly ramping up the heat as temperatures drop
  • Air purifier and humidifier compatible for better home air quality
  • Dual fuel capable with a compatible heat pump and thermostat for energy-saving heating performance
  • 10-Year No Hassle Replacement limited warranty
  • 10-Year Parts Limited Warranty
  • Lifetime Heat Exchanger Limited Warranty
  • View Brochure

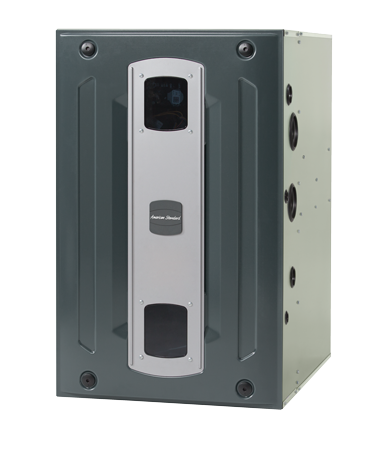

American Standard Two Stage Gold S9V2-VS Gas Furnace

  • 97% gas efficiency (AFUE)
  • Energy star rated
  • Variable speed draft inducer provides comfort and maximum efficiency with very little sound helping ensure quiet performance for your home.
  • Stainless steel primary and secondary heat exchangers, and new Vortica II blower combine to provide a consistent flow of warm and comfortable air
  • Equipped with our proprietary Comfort-R enhanced dehumidification mode that helps reduce the humidity in your home.
  • Blower motor: Variable speed full-featured ECM
  • Gas Valve: Two Stage operation for efficiency and comfort
  • Durable silicone hot surface Igniter
  • Combine with the American Standard AccuClean for a cleaner, healthier, and more comfortable home
  • Lifetime limited warranty on heat exchanger
  • 10 Year limited warranty on internal functional parts
  • View Brochure
